F Ferrule

Get a Price/Quote

Product Details:

Diameter 6 mm
Sealing Type Metal-to-Metal
Tolerance 0.02 mm
Flexibility Rigid
Tensile Strength 360 MPa
Temperature Range -40C to +120C
Thread Type Metric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

F Ferrule Product Specifications

Material Grade CW614N
Connection Type Male
Material Brass
Yield Strength 250 MPa
Product Type F Ferrule
Tensile Strength 360 MPa
Connection Compression Fitting
Color Silver
Coating Type Electroplated
Temperature Range -40C to +120C
Thread Type Metric
Sealing Type Metal-to-Metal
Tolerance 0.02 mm
Application Tube Fitting
Rated Pressure up to 315 bar
Flexibility Rigid
Length 14 mm
Diameter 6 mm
Thickness 1.2 mm
Standard DIN 2353 / ISO 8434-1
Surface Treatment Nickel Plated
Outer Diameter 6 mm
Shape Cylindrical
Section Shape Round
Usage Hydraulic and Pneumatic Systems

Environmental Suitability Indoor and Outdoor Use
Finish Type Smooth
Packing Type Poly Bag / Box
Weight 8 grams
Assembly Method Push-in
RoHS Compliance Yes
Compatibility Suited for metric and imperial tubes
Corrosion Resistance High

F Ferrule Trade Information

Supply Ability 5000 Per Month
Delivery Time 10 Days

Product Description

Discover an opulent solution for your hydraulic and pneumatic needs with our Prime F Ferrule. Manufactured with premium CW614N brass and coated with a smooth, nickel-plated finish, this precision-crafted ferrule meets DIN 2353/ISO 8434-1 standards. Its corrosion resistance is high, making it ideal for both indoor and outdoor applications. Buy online in advance and secure a bargain with prime quality and performance. Virtuoso design ensures compatibility with metric and imperial tubes, providing reliable compression fittings up to 315 bar. Delivered in eco-friendly poly bag or box, RoHS compliant, and rigorously tested for superior strength and sealing.

Advantage and Versatility of F Ferrule

The F Ferrule offers the advantage of a sturdy, nickel-plated brass body, ensuring longevity in challenging environments. Used as a secure connection for hydraulic and pneumatic tubes, its design accommodates both metric and imperial systems. With a smooth finish and precise 0.02 mm tolerance, it promises leak-proof operation and effortless push-in assembly. An opulent choice for industrial applications, it guarantees prime reliability and reduces downtime, making it indispensable for modern fluid systems.

Certifications and Packaging with Added Value

We offer F Ferrule with international certifications, including RoHS compliance, to meet highest industry standards. Sample pieces are available, allowing customers to assess quality before any major outlay. Each piece is carefully packed in either poly bag or box to ensure pristine delivery. By purchasing in bulk or with advance purchase, buyers can benefit from expedited shipping and economical solutions for ongoing projects, supported by steadfast supply and tailored support from a trusted manufacturer in India.

FAQ's of F Ferrule:

Q: How does the F Ferrule ensure corrosion resistance?

A: The F Ferrule is manufactured using high-grade CW614N brass and features nickel plating with electroplated coating, providing robust corrosion resistance suitable for both indoor and outdoor environments.

Q: What tubes are compatible with the F Ferrule?

A: It is designed for use with both metric and imperial tubes, making it highly versatile for a wide range of hydraulic and pneumatic applications.

Q: Where can I use the F Ferrule?

A: The F Ferrule is suited for tube fittings in hydraulic and pneumatic systems operating indoors or outdoors, withstanding temperatures from -40C to +120C and rated pressures up to 315 bar.

Q: What certifications does the F Ferrule have?

A: This ferrule adheres to DIN 2353/ISO 8434-1 standards and meets RoHS compliance for environmental and safety assurance.

Q: What is the assembly process for the F Ferrule?

A: The F Ferrule is engineered for a straightforward push-in assembly with a compression fitting, ensuring metal-to-metal sealing for leak-proof performance.

Q: Is sample delivery available before placing a bulk order?

A: Yes, sample F Ferrules can be requested, allowing you to evaluate the product quality before committing to a larger outlay.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Metric Fittings' category

Stand Pipe Adaptor-SP Thread Type : BSP / NPT / Metric Temperature Range : 20C to 220C Color : Silver Connection : Other, Threaded Tensile Strength : Up to 580 MPa Yield Strength : Up to 250 MPa Material : Other , Mild Steel / Stainless Steel / Brass Product Type : Other, Stand Pipe Adaptor (SP) Material Grade : SS304 / SS316 / IS 2062 Connection Type : Male / Female Threaded Shape : Round Outer Diameter : 13 mm 60 mm Surface Treatment : Other, Zinc Plated / Galvanized / Chrome Plated Standard : Other, ISO / DIN / BSP Usage : Pipe Fittings / Plumbing / Firefighting Section Shape : Other, Cylindrical Diameter : 13 mm 60 mm Length : 30 mm 120 mm Thickness : 3 mm 12 mm Flexibility : Rigid Rated Pressure : up to 160 bar Tolerance : 0.05 mm Sealing Type : Threaded Seal / Oring (optional) Application : other, Standpipe connection, Fire protection systems, Industrial piping Coating Type : Zinc / Chrome / Nickel Bend Radius : Not Bendable

Send Inquiry

Male Female Reducer-MF Thread Type : BSP, NPT Temperature Range : 20C to 120C Color : Golden / Silver Connection : Other, Threaded Tensile Strength : 350 MPa Yield Strength : 225 MPa Material : Brass Product Type : Other, Male Female Reducer (MF) Material Grade : CW614N / CW617N Connection Type : Male x Female Shape : Other, Hexagonal Outer Diameter : 12 mm to 50 mm Surface Treatment : Other, Nickel Plated Standard : Other, ISO, DIN, BSP Usage : Pipe Fitting / Plumbing Section Shape : Round Diameter : Variable Length : 25 mm to 80 mm Thickness : As per Specification Flexibility : Rigid Rated Pressure : Up to 16 bar Tolerance : 0.02 mm Sealing Type : Thread Seal (PTFE recommended) Application : other, Industrial, Commercial, Water, Oil, Gas Coating Type : Nickel Coated Bend Radius : Not Bendable

Send Inquiry

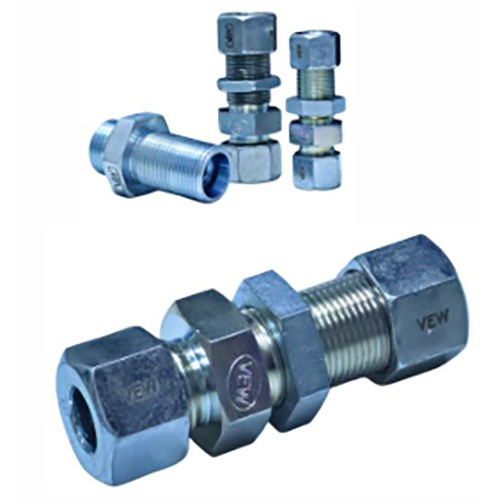

SV Straight Bulkhead Couplings Thread Type : BSPT, NPT, Metric Temperature Range : 40C to 400C Color : Silver Connection : Other, Compression Fitting Tensile Strength : 520 MPa Yield Strength : 205 MPa Material : Stainless Steel Product Type : Other, Straight Bulkhead Coupling Material Grade : SS316/SS304 Connection Type : Bulkhead Shape : Other, Straight Outer Diameter : 6 mm to 25 mm Surface Treatment : Other, Polished Standard : Other, ISO 84341/DIN 2353 Usage : Instrumentation, Hydraulic, Chemical, Gas Lines Section Shape : Other, Cylindrical Diameter : 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm Length : Varies by model (typically 4090 mm) Thickness : 25 mm Flexibility : Rigid Rated Pressure : Up to 6000 psi Tolerance : 0.05 mm Sealing Type : Double Ferrule Application : other, Pipe and Tube Fitting Coating Type : None (Polished Finish)

Send Inquiry

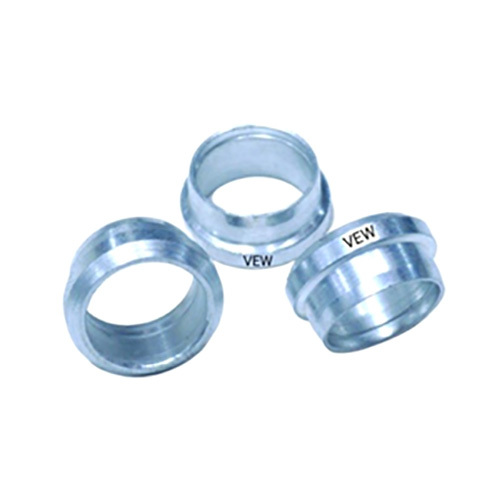

Ferrul e- F Thread Type : BSP/Metric/UNF Temperature Range : 40C to +150C Color : Silver Connection : Other, Compression Tensile Strength : 350 MPa Yield Strength : 200 MPa Material : Brass Product Type : Other, Ferrule Material Grade : CW614N Connection Type : Double Ferrule/Single Ferrule Shape : Round Outer Diameter : 2 mm to 25 mm Surface Treatment : Other, Nickel Plated Standard : Other, IS:319/1989 Usage : Pipe Fittings Section Shape : Other, Circular Diameter : 225 mm Length : Varies (Customized as per requirement) Thickness : 1 mm Flexibility : Rigid Rated Pressure : Up to 350 Bar Tolerance : 0.02 mm Sealing Type : MetaltoMetal Application : other, Hydraulic & Pneumatic Fittings Coating Type : Electro Nickel Plated
