Female Elbow-FW

Get a Price/Quote

Product Details:

Temperature Range -20C to 200C
Diameter 6 mm to 50 mm
Bend Radius As per fitting size, 90 Elbow
Thread Type BSP/NPT
Tolerance 0.05 mm
Flexibility Rigid
Tensile Strength 515 MPa (for SS304)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Female Elbow-FW Product Specifications

Diameter 6 mm to 50 mm
Section Shape Round
Bend Radius As per fitting size, 90 Elbow
Temperature Range -20C to 200C
Product Type Female Elbow-FW
Material Stainless Steel
Tolerance 0.05 mm
Outer Diameter 1/8 to 2
Thread Type BSP/NPT
Usage Pipe Fittings/Plumbing
Rated Pressure 150 PSI to 6000 PSI
Color Silver
Connection Type Female to Female
Application Hydraulic, Pneumatic, Industrial Pipe Joints
Sealing Type Threaded Seal (PTFE tape recommended)
Length Varies as per size/model
Shape Elbow (L-Shaped)
Flexibility Rigid
Tensile Strength 515 MPa (for SS304)
Thickness 2-6 mm (depending on size)
Connection Female Threaded
Surface Treatment Polished
Coating Type None/Corrosion Resistant
Material Grade SS304 / SS316
Standard ASTM, DIN, JIS
Yield Strength 205 MPa (for SS304)

Port Size 1/8'' to 2'' (DN6 to DN50)
Manufacturing Process Forged/Precision Machined
Thread Size As per BSP/NPT Standards
Installation Threaded, Easy to Install
End Connection Female Thread on Both Sides
Packaging Type Box/Carton
Corrosion Resistance High
Leakage Test Tested up to rated pressure
Max Working Pressure Varies by size, up to 6000 PSI
Compatible Fluids Water, Air, Oil, Gases (non-corrosive)

Female Elbow-FW Trade Information

Supply Ability 5000 Per Month
Delivery Time 10 Days

Product Description

Take advantage of our lustrous Female Elbow-FW, crafted through enlightened forging and precision machining for outstanding durability. This terrific pipe fitting features high corrosion resistance, favorable reviews in demanding applications, and thorough leakage testing up to 6000 PSI. With spotlight-worthy compatibility for water, air, oil, and non-corrosive gases, it fits a diverse array of hydraulic and pneumatic systems. Easy to install with female threads on both sides per BSP/NPT standards, this SS304/SS316 elbow ensures a steadfast, rigid connection, and wears a polished finish for a refined touch to any industrial or plumbing environment.

Versatile Applications & Usage Highlights

The Female Elbow-FW is suitable for use in hydraulic, pneumatic, and industrial pipe joint systems. Used for connecting pipes at a 90-degree angle, it offers reliable performance in settings where corrosion resistance and high pressure are critical. Designed for heavy-duty and frequent usage, it's perfect for plumbing, oil, water, air, and gas distribution lines. Its easy-to-install, threaded connection ensures quick integration for routine maintenance or new installations.

Sample Policy, Certifications & Secure Shipping

Our Female Elbow-FW supports a customer-friendly sample policy, encouraging hands-on evaluation before large-scale procurement. Certified to ASTM, DIN, and JIS standards, each fitting undergoes rigorous quality checks. Order processing is streamlined for efficiency, promising quick dispatch once your order is confirmed. Transport services deliver products safely in secure box/carton packaging, minimizing transit risks and ensuring your fittings arrive in pristine, polished condition.

FAQ's of Female Elbow-FW:

Q: How is the Female Elbow-FW manufactured for enhanced quality?

A: The Female Elbow-FW is crafted using a forged and precision-machined process, ensuring each piece delivers superior strength, tight tolerances, and a polished, lustrous surface for optimal performance and longevity.

Q: What fluids and pressures can this elbow fitting handle?

A: It is compatible with water, air, oil, and non-corrosive gases, supporting maximum working pressures up to 6000 PSI depending on the size, making it ideal for various hydraulic and pneumatic systems.

Q: What makes installation of the Female Elbow-FW straightforward?

A: Featuring a threaded, female-to-female connection as per BSP/NPT standards, this elbow is easy to install and integrates seamlessly into existing pipework using basic hand tools and PTFE tape for a secure, leak-proof seal.

Q: Where can the Female Elbow-FW be effectively utilized?

A: It's suitable for use in plumbing, hydraulic networks, pneumatic setups, and industrial pipe joints due to its robust build, high corrosion resistance, and ability to handle temperature ranges from -20C to 200C.

Q: What are the benefits of its corrosion-resistant stainless steel material?

A: Made from SS304 or SS316 stainless steel, the elbow boasts high corrosion resistance, ensuring a long operational lifespan and reduced maintenance in aggressive or demanding environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Metric Fittings' category

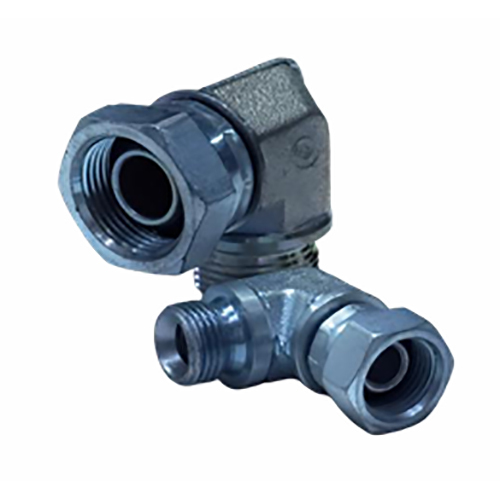

EVW Swivel Elbow Material : Brass Product Type : Other, Swivel Elbow Temperature Range : 20C to +80C Section Shape : Round Diameter : 6 mm to 12 mm Color : Silver Rated Pressure : Up to 15 bar Usage : Pneumatic and Hydraulic Systems Thread Type : BSPT / NPT Outer Diameter : 6 mm, 8 mm, 10 mm, 12 mm (as per model) Tolerance : 0.05 mm Tensile Strength : 350 MPa Flexibility : Swivel Movement Shape : Other, Elbow (90) Length : Varies with model Sealing Type : Oring Sealed Application : other, Fluid and Air Transfer Connection Type : Male x Female Standard : Other, ISO 9001 Certified Yield Strength : 210 MPa Material Grade : CW617N Surface Treatment : Other, Nickel Plated Connection : Other, Threaded Thickness : 2 mm Coating Type : Nickel Bend Radius : 90 Fixed

Send Inquiry

Male Stud Connector-GE-ED Material : Brass Product Type : Other, Male Stud Connector Temperature Range : 40C to +120C Section Shape : Other, Cylindrical Diameter : 10 mm Color : Silver Rated Pressure : 400 bar Usage : Hydraulic and Pneumatic Pipe Connection Thread Type : Metric Outer Diameter : 10 mm Tolerance : 0.01 mm Tensile Strength : Minimum 340 MPa Flexibility : Rigid Shape : Other, Hexagonal Body with Threaded Stud Length : 32 mm Sealing Type : ED Ring Sealing Application : other, Industrial, Machinery, Automation Systems Connection Type : Stud Fitting Standard : Other, DIN 2353 Yield Strength : 210 MPa Material Grade : CW614N Surface Treatment : Other, Nickel Plated Connection : Other, Male Thread Thickness : 2 mm Coating Type : Nickel Bend Radius : Not Flexible

Send Inquiry

CROSS Equal Cross Couplings Material : Carbon Steel Product Type : Other, Equal Cross Coupling Temperature Range : 20C to 200C Section Shape : Round Diameter : 1/2 to 6 Color : Silver / Black Rated Pressure : 150 PSI Usage : Industrial Pipe Fittings Thread Type : BSP / NPT Outer Diameter : 1/2 to 6 (12.7 mm to 152.4 mm) Tolerance : 0.1 mm Tensile Strength : 440 MPa (min) Flexibility : Rigid Shape : Other, Cross Length : Customized / Standard Sealing Type : Mechanical Threaded Application : other, Plumbing, Gas Pipe, Oil, Water Supply Connection Type : Threaded Standard : Other, DIN / ANSI / ASME / BS Yield Strength : 240 MPa (min) Material Grade : A105 / A234 WPB Surface Treatment : Other, Galvanized / Black Coated Connection : Other, Female Threaded Thickness : 3 mm 10 mm Coating Type : Hot Dip Galvanized, Black Painted

Send Inquiry

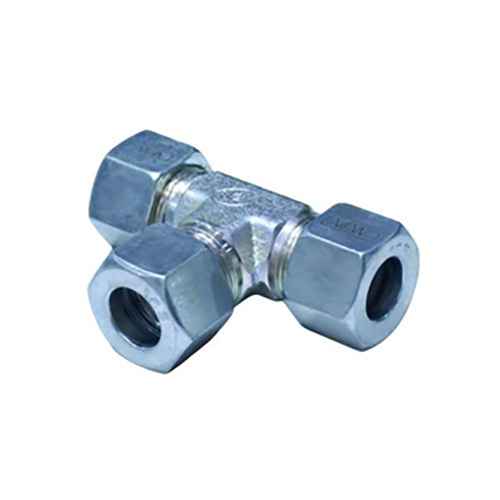

Equal Tee-T Material : Stainless Steel Product Type : Other, Equal TeeT Temperature Range : 20C to 180C Section Shape : Round Diameter : 25 mm Color : Silver Rated Pressure : Up to 16 Bar Usage : Pipe Fitting Thread Type : Not Threaded Outer Diameter : 25 mm Tolerance : 0.1 mm Tensile Strength : 520 MPa Flexibility : Rigid Shape : Other, Tee Length : 80 mm Sealing Type : MetaltoMetal Application : other, Industrial, Plumbing, Chemical, Oil & Gas Connection Type : Welding Standard : Other, ASTM A403, ASME B16.9 Yield Strength : 205 MPa Material Grade : SS304/SS316 Surface Treatment : Other, Polished Connection : Other, Butt Weld Thickness : 2 mm Bend Radius : 90
