NRV Check Valves

Get a Price/Quote

Product Details:

Material SS
Usage Industrial
Size Various
Pressure High Pressure
Color Silver
Temperature As per industry standard Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

NRV Check Valves Price And Quantity

Minimum Order Quantity 10 Unit

NRV Check Valves Product Specifications

Size Various
Color Silver
Usage Industrial
Material SS
Temperature As per industry standard Celsius (oC)
Pressure High Pressure

NRV Check Valves Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Technical Specification

Construction
Flow direction
Mounting style
Viscosity range
Hydraulic medium
Operating pressure
Fluid temperature range
Fluid cleanliness requirament
Nominal flow handling capacity
Cracking pressure available In
Line Mounting

Seat type: Free (low. from Port A to B Leakage free closure in opposite direction

In line mounting: 10 Cst to 380 Cst

Mineral Oil: 315 Bar -20 to +70 degree C

As per ISO Code 16/13 or better

Unit Dimensions Line mounting valve

Size	D1	L1	T1	A/F	WT	T2
NG	BSP/NPT	mm	mm	mm	Kgs.	mm
6	G 1/4	58	12	19	0.1	15
10	G 1/2	72	14	30	0.3	19
16	G 3/4	85	17	36	0.47	23
20	G1	98	21	46	0,88	26
30	G1-1/2	132	31	65	2,40	39

Size NG	Flow (L.P.M.)
06	10
10	20
16	30
20	120
30	280

0.5 , 1 , 2 , 3 , or 5 Bar

Size NG	Row (L.RM.)
06	0.1
10	0.31
16	0.63
20	0.95

High-Performance Industrial Non-Return Valves

Our NRV check valves are expertly designed for high-pressure environments, utilizing robust stainless steel to guarantee maximum reliability. With several size options available, these valves cater to diverse industrial settings, ensuring adaptable installation and consistent operation. The industry-standard temperature resistance further extends their service life and broadens their applicability across sectors.

Trusted Manufacturing and Custom Solutions

As leading manufacturers, suppliers, and traders in India, we uphold stringent quality controls throughout production. Clients receive personalized service, from product selection to post-sale support. We continuously adapt our offerings to meet unique operational needs, making us a preferred partner in industrial fluid management.

FAQs of NRV Check Valves:

Q: How are NRV check valves typically installed in industrial environments?

A: NRV check valves are installed inline within piping systems to prevent backflow. Positioning the valve correctly (with flow direction matching the arrow on the valve) ensures optimal performance. For specific installation instructions, always follow the manufacturers guidelines and consult a qualified technician.

Q: What materials are used in the construction of these NRV check valves?

A: These NRV check valves are manufactured using high-quality stainless steel (SS), providing superior corrosion resistance, durability, and suitability for handling high-pressure and industrial-standard temperature ranges.

Q: When should NRV check valves be used in a fluid system?

A: NRV check valves are essential in any scenario where fluid backflow must be prevented, such as in pumps, pipelines, and process systems commonly found in industrial applications. They are particularly crucial in maintaining system integrity in high-pressure environments.

Q: Where can these NRV check valves be sourced in India?

A: Our NRV check valves can be procured directly from us as a manufacturer, as well as through authorized suppliers and traders across India. We ensure reliable distribution and technical support for industrial clients nationwide.

Q: What is the process involved in manufacturing these NRV check valves?

A: Manufacturing involves selecting premium stainless steel, precision machining, rigorous assembly, and comprehensive quality checks. Each valve undergoes testing for pressure and temperature compliance, ensuring it meets industry standards before delivery.

Q: How are NRV check valves used and what are their key benefits?

A: NRV check valves are used in industrial systems to automatically block reverse fluid flow, protecting pumps and equipment. Key benefits include robust performance under high pressure, resistance to corrosion, and maintenance-free operation, contributing to reduced downtime and improved operational safety.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Check Valves' category

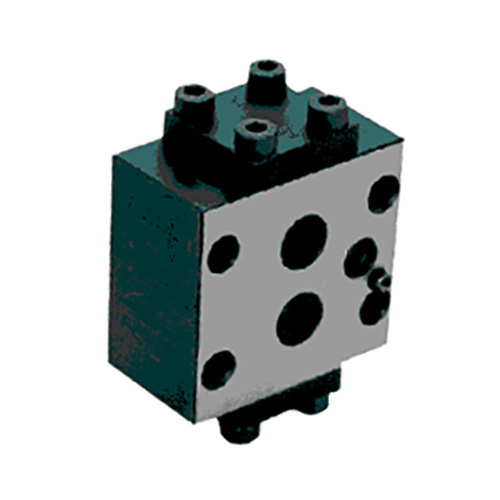

Flow Control Check Valves Modular Minimum Order Quantity : 1 Color : Silver Size : Various Temperature : As per industry standard Celsius (oC) Pressure : High Pressure Material : SS Usage : Industrial
