SC2 Suction Strainer

Get a Price/Quote

Product Details:

Features High Quality
Material SS
Surface Finish Mill Finish
Color Silver
Warranty Yes
Usage Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SC2 Suction Strainer Price And Quantity

Minimum Order Quantity 10 Unit

SC2 Suction Strainer Product Specifications

Warranty Yes
Features High Quality
Color Silver
Surface Finish Mill Finish
Material SS
Usage Industrial

SC2 Suction Strainer Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

SILENT FEATURES :

Reusable SS 100 mesh / 149 micron std
Aluminum die cast nut
Steel cap / support tube
Continuous epoxy bond
Suitable for hydraulic/mineral oil
Max. Working temp. 80oC

MODEL	FLOW GPM	THREAD SIZE (BSP)/ NPT	OVER ALL LENGTH B mm	A/F C mm	DIA D mm	SCREEN AREA (SQ.IN.)	Wt. Kgs.
SC2-01	1	1/4"	70	22	35	19.34	0.09
SC2-03	3	1/4"	62	22	57	31.39	0.12
SC2-03	3	3/8"	62	25	57	31.39	0.12
SC2-05	5	1/2"	68	32	65	44.19	0.2
SC2-05	5	3/4"	68	36	65	44.19	0.2
SC2-07	7	1/2"	93	32	65	66.3	0.22
SC2-07	7	3/4"	93	36	65	66.3	0.22
SC2-10	10	1"	119	41	65	88.35	0.26
SC2-15	15	1-1/4"	142	50	85	138.04	0.38
SC2-20	20	1-1/2"	170	55	85	169.72	0.38
SC2-30	30	1-1/2"	196	55	85	199.14	0.49
SC2-40	40	2"	221	70	97	249.24	0.58
SC2-50	50	2"	246	70	97	280.24	0.64
SC2-75	75	2-1/2"	200	90	140	329.22
SC2-100	100	3"	246	100	140	414.78
SC2-150	150	3"	340	100	140	589.62

Suction Strainers with Alluminium Die Cast Nuts

MODEL	FLOW GPM	THREAD SIZE (BSP)/ NPT	OVER ALL LENGTH B mm	A/F C mm	DIA D mm	SCREEN AREA (SQ.IN.)	Wt. Kgs.
STR4-2	2	1/4"	90	24	46	29	0.1
STR4-3	3	3/8"	90	24	46	29	0.1
STR4-5	5	1/2"	105	30	46	35	0.1
STR4-7	7	3/4"	106	35	63	71.3	0.14
STR4-10	10	1"	135	46	63	93	0.18
STR4-15	15	1-1/4"	139	51	86	144	0.3
STR4-20	20	1-1/2"	168	60	86	180	0.35
STR4-30	30	1-1/2"	200	60	86	216	0.3
STR4-40	40	2"	235	70	100	280	0.55
STR4-50	50	2"	260	70	100	315	0.6
STR4-75	75	2-1/2"	210	90	149	351.54	1.24
STR4-100	100	3"	275	100	149	478.49	1.48
STR4-150	150	3"	342	100	149	615.2	1.64

REQUEST FOR QUOTE

NOTE: All metal sturdy one piece plated steel construction with reusable plated stainless steel 100 mesh cloths and female B.S.P./NPT Thread standard supply can be easily removed cleaned and reused.

Unmatched Performance in Industrial Filtration

The SC2 Suction Strainer stands out for its exceptional ability to filter out solid particles from liquids in industrial systems. Designed for heavy-duty use, it provides uninterrupted flow and consistent protection for pumps and connected machinery, significantly reducing maintenance costs and downtime. Its quality assurance ensures reliable operation, making it a preferred choice in various industries.

High-Quality Stainless Steel Construction

Constructed from top-grade stainless steel, the SC2 Suction Strainer features a durable mill finish that resists corrosion and wear, even under harsh conditions. This sturdy construction not only extends product lifespan but also maintains optimal filtration efficiency throughout its use, supporting dependable industrial performance.

FAQs of SC2 Suction Strainer:

Q: How is the SC2 Suction Strainer installed and used in industrial applications?

A: The SC2 Suction Strainer is typically fitted at the suction side of pumps, where it filters out debris and solid particles before they enter the system. Installation involves connecting it securely to piping, ensuring a tight seal for effective filtration in various industrial processes.

Q: What advantages does the stainless steel (SS) material offer for the SC2 Suction Strainer?

A: The stainless steel construction provides superior resistance to corrosion and mechanical wear, ensuring a long service life. This makes the strainer highly reliable for continuous industrial usage, even in environments with harsh chemicals or fluctuating temperatures.

Q: When should the SC2 Suction Strainer be maintained or cleaned?

A: It is recommended to inspect and clean the SC2 Suction Strainer regularly based on operating conditions and the volume of particulates handled. Routine maintenance helps maintain optimal flow and filtration efficiency, preventing clogging and ensuring system protection.

Q: Where is the SC2 Suction Strainer manufactured and supplied from?

A: The SC2 Suction Strainer is manufactured, supplied, and traded in India, adhering to stringent quality standards for industrial equipment. It is widely available across the country through reputable dealers and suppliers.

Q: What is the process for claiming warranty on the SC2 Suction Strainer?

A: To claim the warranty, customers should contact the authorized supplier or manufacturer in India with purchase details and product information. The warranty covers manufacturing defects, and the process typically involves assessment and resolution as per company policy.

Q: How does using the SC2 Suction Strainer benefit industrial operations?

A: By efficiently filtering contaminants and protecting critical equipment, the SC2 Suction Strainer helps reduce maintenance frequency, prolong machinery lifespan, and enhance overall operational reliability, contributing to long-term cost savings for industrial users.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Suction Strainer' category

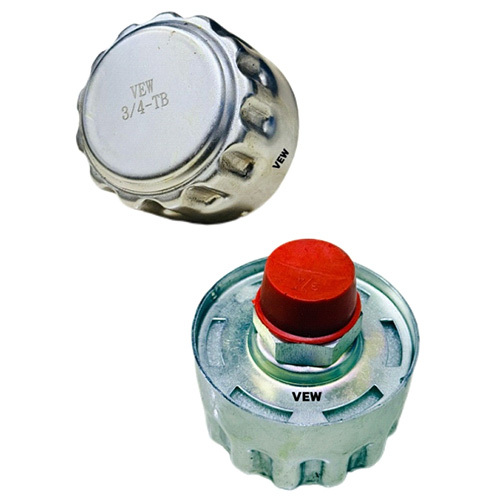

TB Tank Breasther Minimum Order Quantity : 1 Warranty : Yes Features : High Quality Material : SS Color : Silver Surface Finish : Mill Finish Usage : Industrial

Send Inquiry

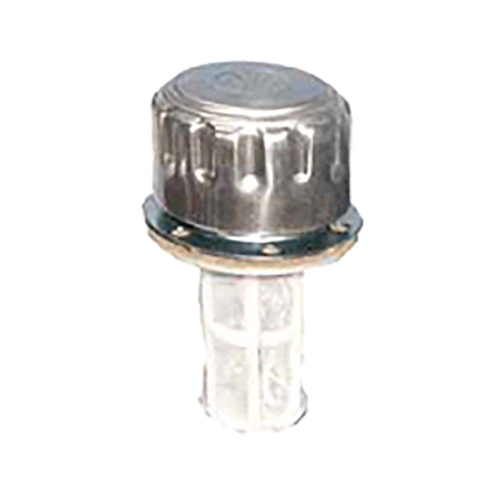

FSB Filler Breather Minimum Order Quantity : 10 Warranty : Yes Features : High Quality Material : SS Color : Silver Surface Finish : Mill Finish Usage : Industrial
