EVWR Swivel Elbow Conn

Get a Price/Quote

Product Details:

Bend Radius Min. 20 mm
Connection Type Swivel Elbow
Flexibility Rotatable Joint
Yield Strength 250 MPa
Tensile Strength 350 MPa
Sealing Type NBR O-Ring Seal
Coating Type Corrosion Resistant Nickel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

EVWR Swivel Elbow Conn Product Specifications

Application Fluid Transfer Fittings
Sealing Type NBR O-Ring Seal
Connection Threaded Swivel
Thickness 2 mm
Tensile Strength 350 MPa
Yield Strength 250 MPa
Bend Radius Min. 20 mm
Connection Type Swivel Elbow
Rated Pressure 10 Bar
Material Grade CW617N Brass
Flexibility Rotatable Joint
Section Shape Round
Color Metallic Gold/Silver
Diameter 8 mm
Material Brass
Usage Pneumatic and Hydraulic Systems
Outer Diameter 8 mm
Surface Treatment Nickel Plated
Thread Type BSPT (British Standard Pipe Tapered)
Temperature Range -20C to +120C
Length 40 mm
Coating Type Corrosion Resistant Nickel
Shape Elbow (90)
Product Type Swivel Elbow Connector
Standard ISO/R Standard
Tolerance 0.1 mm

Packaging Type Individual Poly Bag/Box
Weight 32 grams
End Type Male/Female Combination
Leakage Testing 100% Factory Tested
Installation Type Push-in & Threaded
Operating Medium Water, Air, Oil
Swivel Angle 360 degrees continuous rotation
Minimum Order Quantity 50 Pieces

EVWR Swivel Elbow Conn Trade Information

Supply Ability 5000 Per Month
Delivery Time 10 Days

Product Description

Discover the EVWR Swivel Elbow Conn, a must-have masterpiece for fluid transfer applications. This masterful connector boasts a sublime 360-degree continuous swivel angle, designed for water, air, and oil mediums. Fabricated from ISO/R standard, corrosion-resistant CW617N brass with nickel plating, it ensures superior durability and aesthetics. Featuring BSPT threaded ends, NBR O-ring seal, and a male/female push-in combination, this connector guarantees a leak-free, flexible connection for pneumatic and hydraulic systems. Each piece is 100% factory leakage-tested and individually packed, making it a true reserve for professionals. Secure your batch today-minimum order 50 pieces.

Extra Features & Applications of EVWR Swivel Elbow Conn

The EVWR Swivel Elbow Conn excels with its precise 0.1 mm tolerance, high tensile and yield strengths (350 MPa/250 MPa), and 2 mm thick robust body. Its rotatable joint is ideal for applications that demand flexibility, such as fluid transfer in pneumatic and hydraulic systems, as well as in industrial automation and machinery. Made for diverse environments, it performs admirably in rigorous settings, effectively handling pressures up to 10 bar and operating temperatures from -20C to +120C.

Sample, Policy & Payment Terms for EVWR Swivel Elbow Conn

Samples of EVWR Swivel Elbow Conn are available upon request, following our transparent sample policy. The asking price is competitive, suitable for bulk orders. We support multiple payment terms for your convenience. Transport services are reliable and ensure safe, quick dispatch of your products to any location in India. Reserve your sample now for a firsthand experience before confirming large-scale orders and experience our swift, professional transaction process.

FAQ's of EVWR Swivel Elbow Conn:

Q: How does the swivel feature enhance the usability of the EVWR Swivel Elbow Conn?

A: The 360-degree continuous rotation provided by the swivel mechanism offers exceptional flexibility during installation and operation, making it easier to achieve optimal alignment in tight spaces for pneumatic and hydraulic systems.

Q: What testing process ensures the leak-proof quality of each connector?

A: Every EVWR Swivel Elbow Conn undergoes 100% factory leakage testing, guaranteeing reliable sealing and dependable performance under rated pressure and temperature conditions.

Q: Where can this product be most effectively applied?

A: This connector is ideal for use in fluid transfer fittings within pneumatic and hydraulic systems, industrial automation, and areas requiring robust connections for water, air, or oil.

Q: What are the benefits of the CW617N brass construction and nickel plating?

A: The CW617N brass material provides excellent strength and durability, while nickel plating offers superior corrosion resistance and a refined metallic finish, ensuring long-lasting utility.

Q: What is the minimum order quantity and how are the products packaged?

A: The minimum order quantity is 50 pieces. Each connector is individually packed in a poly bag or box for secure, damage-free delivery.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Metric Fittings' category

WER Tepper Parallel Male Stud Elbow Sealing Type : ORing or MetaltoMetal Application : other, Industrial Pipe Connections, Automation Lines, Compressed Air Systems Connection : Other, Threaded Stud Thickness : Customizable (typically 13 mm) Tensile Strength : 300 MPa Yield Strength : 120 MPa Connection Type : Male Stud Material Grade : CW614N / CW617N (Brass Grade) Flexibility : Rigid Color : Silver/Golden (as per surface finish) Section Shape : Round Diameter : 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 22 mm (as required) Material : Brass Outer Diameter : 6 mm to 22 mm (varies by model) Usage : Pneumatic and Hydraulic Fittings Surface Treatment : Other, Nickel Plated Thread Type : Parallel (BSPP, G, or Metric Threads) Temperature Range : 20C to +120C Length : 28 mm to 55 mm (depends on specification) Coating Type : Nickel Plating Shape : Other, Elbow (Right Angle) Standard : Other, DIN, ISO Product Type : Other, Parallel Male Stud Elbow Tolerance : 0.01 mm Rated Pressure : Up to 16 bar Bend Radius : Right Angle (90 Elbow)

Send Inquiry

Swivel Elbow Connector-EVWR Sealing Type : NBR ORing Application : other, Industrial Automation, Fluid Conveyance Connection : Other, PushIn / Threaded Thickness : 2.5 mm Tensile Strength : Up to 400 MPa Yield Strength : 340 MPa Connection Type : Swivel PushtoConnect Material Grade : CW617N Flexibility : 360 Swivel Movement Color : Silver/Gold Section Shape : Round Diameter : 8 mm Material : Brass Outer Diameter : 8 mm Usage : Pneumatic & Hydraulic Systems Surface Treatment : Other, Nickel Plated Thread Type : BSPT (R) Male Temperature Range : 20C to +80C Length : 32 mm Coating Type : Corrosion Resistant Nickel Coating Shape : Other, Elbow (90 Swivel) Standard : Other, ISO 228/1 Product Type : Other, Swivel Elbow Connector (EVWR Series) Tolerance : 0.05 mm Rated Pressure : 016 Bar Bend Radius : Minimum 30 mm

Send Inquiry

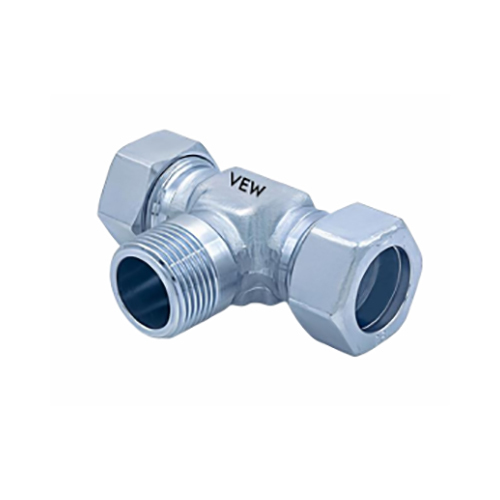

TE BSP Male Stud Tee Sealing Type : MetaltoMetal Application : other, Pipe Fitting/Fluid Transfer Connection : Other, Threaded Thickness : Custom as per specification Tensile Strength : As per DIN 2353 Yield Strength : As per Material Grade Specification Connection Type : BSP Male stud Material Grade : EN 1.0718 Flexibility : Rigid Color : Silver Section Shape : Round Diameter : As Specified Material : Carbon Steel Outer Diameter : 6 mm to 42 mm Usage : Industrial/Hydraulic Applications Surface Treatment : Other, Zinc Plated Thread Type : BSP (British Standard Pipe) Temperature Range : 40C to +120C Length : Standard or Custom Coating Type : Trivalent Zinc Shape : Other, Tee Standard : Other, DIN 2353 / ISO 84341 Product Type : Other, BSP Male Stud Tee Tolerance : +/ 0.01 mm Rated Pressure : Up to 600 Bar Bend Radius : 90 Tee
